Building and Training Deep Neural Networks for Image Classification

Image classification is an important topic that is applicable to many branches in science and technology. The best methods to solve this problem are convolutional neural networks. Large networks can take weeks to train using multiple GPUs. In order to learn more about how to implement convolutional neural networks, preprocess the data, and train them, in this project we implement a few simplified CNN architectures, train them from scratch using the Pascal VOC data set and benchmark them against a baseline model.

Contents

  1. Analysis
    a. Data Preprocessing

  2. Algorithms and Techniques

  3. Results

  4. Conclusion

  5. Challenges

  6. References

Project Overview

Analysis

Data Preprocessing

I used pandas to load the files: [person_test.txt,cat_test.txt,dog_test.txt,car_test.txt] into a data frame where each row contains the [image_ID] followed by values indicating whether the image contains a person, dog, cat or car (True = 1, False = -1). In addition, we process the data and ensure that all of the objects in the data frame are mutually exclusive. Therefore each image will belong to only one category. I performed this step to attempt to make the training process easier for the classifier since it would be trained to produce results for only one unique class label for each image during the training process. The first few entries of this data frame are given below,

1
2
3
4
5
6
7
       img_ID  is_person  is_dog  is_cat  is_car
    0  002846          1      -1      -1      -1
    1  002582          1      -1      -1      -1
    2  004306         -1       1      -1      -1
    3  001748          1      -1      -1      -1
    4  005074         -1      -1      -1       1
    ...

After filtering the data to make the image categories mutually exclusive, the number of objects in each class are

1
2
3
4
5
    The total number of images:  2660
    Number of Persons:  1619
    Number of Dogs:  298
    Number of Cats:  278
    Number of Cars:  465

I noticed that the category [person]{} has significantly more objects than the other classes. During training, this may introduce a bias in our classifier and as a result of a large number of members in that category it may be better at detecting people than other objects. Therefore, to correct this problem, I chose to remove random images from the [person]{} category until only 500 are left. Once this is complete, my code splits the remaining data set into 80$\%$ training and 20$\%$ validation sets. A bash script will then be generated by the Jupyter notebook that creates the [testing, validation]{} folders which contain subfolders for each object category. The bash script will also place the appropriate copies of images into appropriate subfolders. Below I show an example of the new data frame, with the more balanced sets,

1
2
3
4
5
6
7
8
9
10
11
12
13
14
    =========================================
    dropped:  1119
    new person number:  500
    new dog number:  298
    new cat number:  278
    new car number:  465
    New Dataframe 1541
       img_ID  is_person  is_dog  is_cat  is_car
    0  007342          1      -1      -1      -1
    1  007001         -1      -1      -1       1
    2  002821          1      -1      -1      -1
    3  004874          1      -1      -1      -1
    4  006394         -1      -1       1      -1
    =========================================

After improving the balance and splitting the data into training/validation the total number of images that went these categories are

1
2
    Training set size:  1233
    Validation set size:  308

Because the image sets are still fairly small I used image augmentation to generate more training samples from the data set. This was accomplished with the augmentation features in Keras in the following code snippet.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
    train_datagen = ImageDataGenerator(
        rotation_range=50.,
        width_shift_range = 0.2,
        height_shift_range = 0.2,
        rescale=1. / scale,
        shear_range=0.2,
        zoom_range=0.2,
        horizontal_flip=True,
        vertical_flip = True
    )


    train_generator = train_datagen.flow_from_directory(
        train_data_dir,
        target_size=(img_width, img_height),
        batch_size=batch_size,
        class_mode='categorical')

One important parameter in the above code snippet is the scale parameter. This parameter will rescale all images to a particular size. This parameter was treated as a hyperparameter for the models and the values of the parameter that I chose to try were 128 and 256. Larger parameters were run, but due to limitations in computing resources, I was not able to retrieve those results. As shown in the Results section this parameter had an impact on the final models.

Algorithms and Techniques

All models were implemented using Keras. For the architecture of the neural network I chose to try three different methods. The first is a simple benchmark model, consisting of a convolutional network followed by a max pooling layer and then a dense layer with a softmax output. More complicated models should outperform this very simple model. The summary of this network is given below (model 0)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
    Model 0
    _________________________________________________________________
    Layer (type)                 Output Shape              Param #
    =================================================================
    conv2d_24 (Conv2D)           (None, 254, 254, 32)      896
    _________________________________________________________________
    activation_20 (Activation)   (None, 254, 254, 32)      0
    _________________________________________________________________
    max_pooling2d_18 (MaxPooling (None, 127, 127, 32)      0
    _________________________________________________________________
    flatten_10 (Flatten)         (None, 516128)            0
    _________________________________________________________________
    dense_13 (Dense)             (None, 4)                 2064516
    _________________________________________________________________
    activation_21 (Activation)   (None, 4)                 0
    =================================================================
    Total params: 2,065,412
    Trainable params: 2,065,412
    Non-trainable params: 0
    _________________________________________________________________

For the next model, denoted as model 1, I tried the architecture that was suggested in the Keras blog article Ref.[3]. This architecture consists of sequences of convolutional layers followed by an activation layer and max pooling. This pattern is repeated three times, before the output is flattened and fed through two dense layers which end in a softmax activation output. The model is regulated with dropout layers. The schematic of this network is shown below

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
    Model 1
    _________________________________________________________________
    Layer (type)                 Output Shape              Param #
    =================================================================
    conv2d_25 (Conv2D)           (None, 254, 254, 32)      896
    _________________________________________________________________
    activation_22 (Activation)   (None, 254, 254, 32)      0
    _________________________________________________________________
    max_pooling2d_19 (MaxPooling (None, 127, 127, 32)      0
    _________________________________________________________________
    conv2d_26 (Conv2D)           (None, 125, 125, 32)      9248
    _________________________________________________________________
    activation_23 (Activation)   (None, 125, 125, 32)      0
    _________________________________________________________________
    max_pooling2d_20 (MaxPooling (None, 62, 62, 32)        0
    _________________________________________________________________
    conv2d_27 (Conv2D)           (None, 60, 60, 64)        18496
    _________________________________________________________________
    activation_24 (Activation)   (None, 60, 60, 64)        0
    _________________________________________________________________
    max_pooling2d_21 (MaxPooling (None, 30, 30, 64)        0
    _________________________________________________________________
    flatten_11 (Flatten)         (None, 57600)             0
    _________________________________________________________________
    dense_14 (Dense)             (None, 64)                3686464
    _________________________________________________________________
    activation_25 (Activation)   (None, 64)                0
    _________________________________________________________________
    dropout_11 (Dropout)         (None, 64)                0
    _________________________________________________________________
    dense_15 (Dense)             (None, 4)                 260
    _________________________________________________________________
    activation_26 (Activation)   (None, 4)                 0
    =================================================================
    Total params: 3,715,364
    Trainable params: 3,715,364
    Non-trainable params: 0
    _________________________________________________________________

The last model that I tried was the the VGG-like convnet suggested in Ref. [4]. This model consists of sequences of two consecutive convolutional layers followed by a max pooling layer. There are three such sequences, which at the end are flattened and fed into a dense layer followed by a softmax output layer. This model, denoted as model 2, is summarized below

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
    Model 2
    ________________________________________________________________
    Layer (type)                 Output Shape              Param #
    =================================================================
    conv2d_46 (Conv2D)           (None, 256, 256, 32)      896
    _________________________________________________________________
    conv2d_47 (Conv2D)           (None, 254, 254, 32)      9248
    _________________________________________________________________
    max_pooling2d_31 (MaxPooling (None, 127, 127, 32)      0
    _________________________________________________________________
    dropout_24 (Dropout)         (None, 127, 127, 32)      0
    _________________________________________________________________
    conv2d_48 (Conv2D)           (None, 127, 127, 64)      18496
    _________________________________________________________________
    conv2d_49 (Conv2D)           (None, 125, 125, 64)      36928
    _________________________________________________________________
    max_pooling2d_32 (MaxPooling (None, 62, 62, 64)        0
    _________________________________________________________________
    dropout_25 (Dropout)         (None, 62, 62, 64)        0
    _________________________________________________________________
    conv2d_50 (Conv2D)           (None, 62, 62, 64)        36928
    _________________________________________________________________
    conv2d_51 (Conv2D)           (None, 60, 60, 64)        36928
    _________________________________________________________________
    max_pooling2d_33 (MaxPooling (None, 30, 30, 64)        0
    _________________________________________________________________
    dropout_26 (Dropout)         (None, 30, 30, 64)        0
    _________________________________________________________________
    flatten_15 (Flatten)         (None, 57600)             0
    _________________________________________________________________
    dense_22 (Dense)             (None, 512)               29491712
    _________________________________________________________________
    dropout_27 (Dropout)         (None, 512)               0
    _________________________________________________________________
    dense_23 (Dense)             (None, 4)                 2052
    =================================================================
    Total params: 29,633,188
    Trainable params: 29,633,188
    Non-trainable params: 0
    _________________________________________________________________

Results

In Figs 1 and 2 the results of training the three models for 80 epochs are plotted for image scale sizes of 128 and 256, respectively.

Elephant at sunset

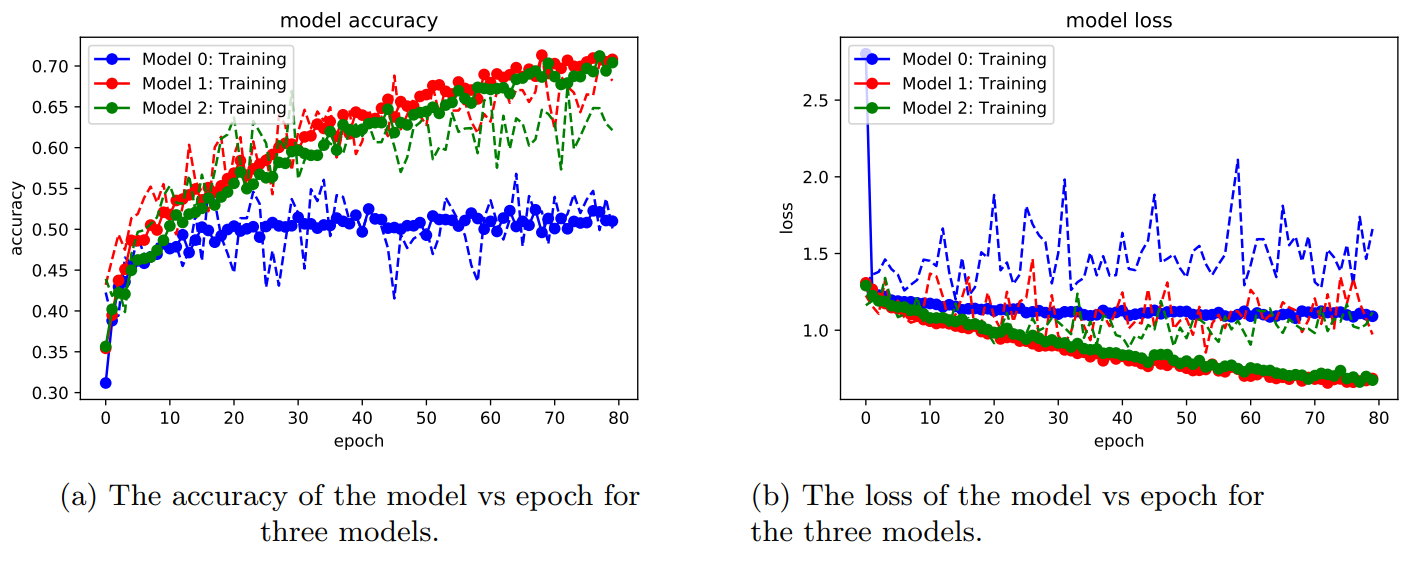

Figure 1: The results for the three models using scale=128 factor. The solid lines represent the value of the metrics on the training set, while the dashed lines represent the scores on the validation set.
Elephant at sunset

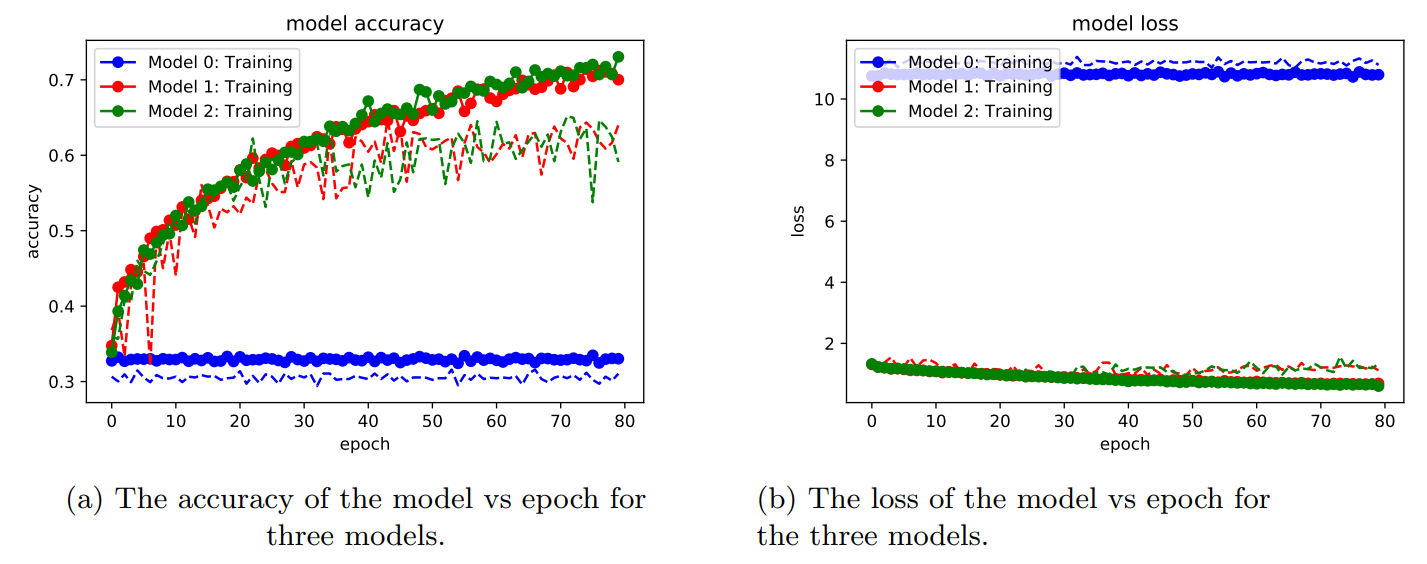

Figure 2: The results for the three models using scale=256 factor. The solid lines represent the value of the metrics on the training set, while the dashed lines represent the scores on the validation set.
Elephant at sunset

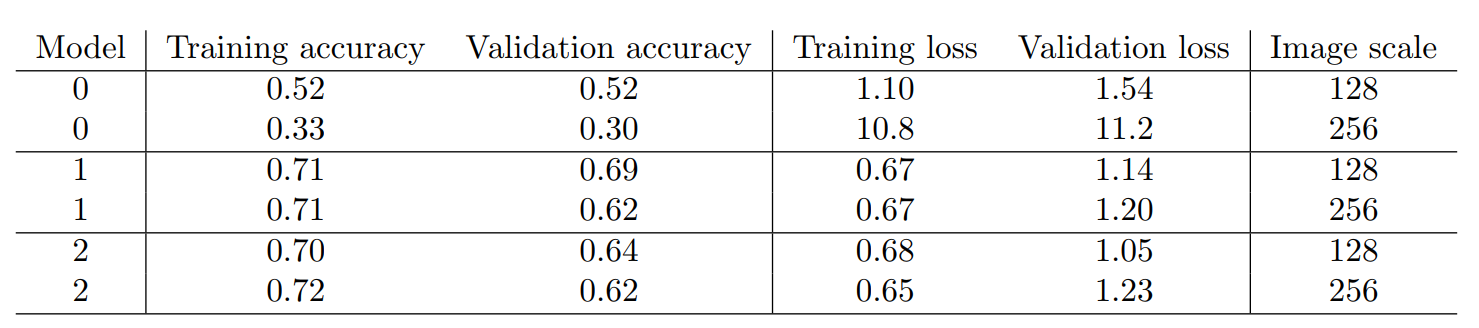

Table 1: The accuracy and losses for the training and validation sets for the three different CNN models.

In Table 1 the results of the three models are summarized using image scale parameters of 128 and 256, respectively. These metrics were produced by taking the average of the last four epoch values. The baseline model 0, was the worst performing algorithm as expected. In addition, this model performed better when using a smaller image scale. Model 1 and model 2 both outperformed the baseline model by about 20% and 50% for image scale parameters 128 and 256, respectively. Both of these models achieved a training set accuracy of about 70% on the training sets and above 60% on the validation sets. Figs 1a and 2a show that the accuracies on the validation sets (dotted lines) have plateaued and that more training epochs will not improve the performance, with the exception of model 1, scale=128 shown in red in Fig. [fig:sub1 128]. However it appears that for all models and scales, the accuracies on the training set are still increasing. The different convergence behaviors between testing and validation sets seem to indicate that, with the exception of model 1 , scale=128, the models are overfitting. This could be overcome by using more aggressive dropout parameters and adding more data to the training images. We also observe in Figs. 1b and 2b that the losses of all models decreases as the epochs increase, but the losses are much smaller for model 1 and 2, and much higher in general for the baseline model.

The result of this analysis suggests that model 1 with a scale=128 was the best performing model, as the accuracy between training and validation sets were very comparable after 80 epochs.

Conclusion

In this project, we constructed three different CNN architectures, one baseline model and two deep CNNs. In all cases our more sophisticated models outperformed the baseline model by a significant margin. The best achieved accuracy for all of the models that we constructed were about 70%. Higher accuracies may be achievable with increased image data, improved CNN architectures and more epochs for training. In the future, I would have liked to use transfer learning to retrain the last layers of a large pre-trained model, however, I ran out of time before I was able to work out the implementation of this task.

Challenges

This project had many challenges associated with it. The first problem that I encountered was that many of the images had multiple objects in it. To fix this problem, I separated the images into mutually exclusive sets. I also tried at one point to use an “other” category for objects that the network didn’t recognize, but this led to very poor accuracies and as a result I decided to drop this extra category. Another issue was that some of the categories that I tried to train the networks on didn’t have enough data, for example, there were only 50 images of cows, so I was not able to use this category. The categories that were used in this project were the ones I found that had the largest number of mutually exclusive members but it took some time to figure this out. Another problem that I encountered was slow execution times on CPUs. When I first developed this code, I was running it on my laptop but this proved too slow until I moved the code onto a Kaggle Kernel with a GPU, however, training the three models still takes several hours. Another issue that I encountered was that when I tried to run the code with an image scale of 512, the code took longer than the time allowed on the Kaggle Kernel, so I was unable to get data for that scale. Overall I learned that image classification is a complicated and very difficult task.

References

[1] A. Krizhevsky, I. Sutskever and G. E. Hinton, “ImageNet Classification with Deep Convolutional Neural Networks”, NIPS’12, 1 1097-1105 (2012).

[2] O. Russakovsky et. al., “ImageNet Large Scale Visual Recognition Challenge”, Int. J. CV. 115, 211-252 (2015).

[3] F. Chollet, (2016), “Building powerful image classification models using very little data”, Accessed 2018.

[4] “Getting started with the Keras Sequential model”, Keras Blog, Accessed 2018.
